In the world of maritime operations, technical rescue, and heavy-duty rigging, the ability to join two ropes securely is a fundamental skill. Among the hundreds of rope knots documented by experts, the Carrick Bend stands out as a masterpiece of symmetry and mechanical efficiency. Known for its aesthetic beauty and its refusal to jam under extreme tension, the Carrick Bend is a staple in the toolkit of any serious outdoor specialist.
Whether you are securing a vessel, hauling heavy timber, or practicing decorative macramé, understanding the nuances of the Carrick Bend is essential. This article provides a comprehensive deep dive into the history, utility, and technical execution of this legendary knot, ensuring you have the knowledge to apply it safely in the field.
Alternative Names: Josephine Knot, Sailor’s Knot, Full Carrick Bend, Anchor Bend (archaic).
What Is a Carrick Bend?
The Carrick Bend is a member of the "bend" family of knots—a category specifically designed to join two separate ropes together to create a single, longer line. While many bends, such as the Sheet Bend or the Fisherman’s Knot, are excellent for general use, the Carrick Bend is uniquely engineered for heavy-duty applications.
Practical Uses and Advantages
What sets the Carrick Bend apart from other outdoor rope techniques is its ability to handle massive loads without "seizing" or "jamming." Most knots, when subjected to extreme weight, become nearly impossible to untie by hand. The Carrick Bend, however, retains its structure. Even after being used to tow a vehicle or secure a large ship, it remains relatively easy to collapse and undo.
Key applications include:
- Towing and Mooring: Historically used for heavy hawsers (large diameter ropes) on ships.
- Search and Rescue: Joining two lifelines when a longer reach is required.
- Arboriculture: Connecting ropes for hauling large limbs or stabilizing trees.
- Decorative Arts: Due to its symmetrical, interlaced pattern, it is frequently used in jewelry and decorative rope mats (often called the Josephine Knot in this context).
Materials and Tools Needed
To successfully tie and utilize a Carrick Bend, you must consider the type of cordage you are using. Because this knot is often used in high-stakes environments, material selection is critical.
Rope Types
- Synthetic Ropes (Nylon/Polyester): These are common in modern outdoor activities. While strong, they can be slippery. When using synthetic lines with a Carrick Bend, it is often recommended to "seize" (tie down) the tails to the standing ends for added security.
- Natural Fiber Ropes (Manila/Hemp): The Carrick Bend performs exceptionally well with natural fibers, as the texture of the rope provides excellent friction.
- Static vs. Dynamic: For most rigging, a static rope is preferred to minimize bounce and energy storage.
Tools and Considerations
- Two Ropes of Similar Diameter: While some bends handle mismatched ropes well, the Carrick Bend is most stable when the two lines are of equal or near-equal thickness.
- Heat Sealer/Knife: If you are cutting your own rope lengths, ensure the ends are properly fused or whipped to prevent fraying.
- Gloves: When tightening knots under high tension, heavy-duty leather gloves are recommended to prevent "rope burn."
How to Tie a Carrick Bend?

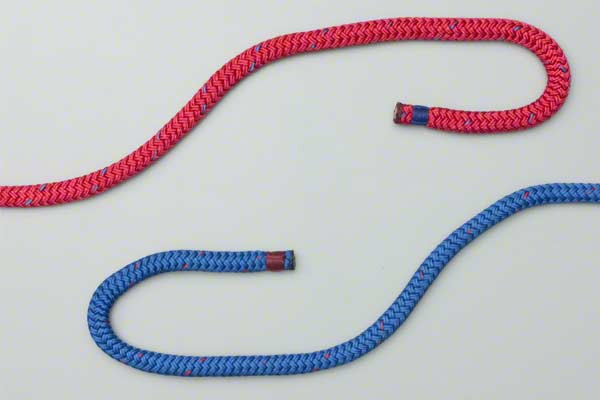

The following instructions describe the process of forming a Carrick Bend using two different colored ropes (Blue and Red) to help you visualize the interlacing pattern. Follow these steps precisely to ensure the knot is formed correctly.

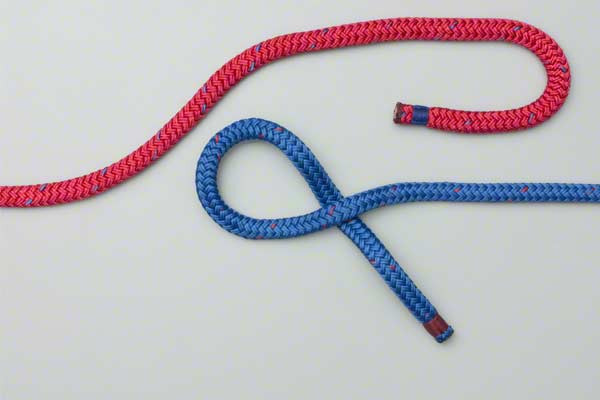

- With one rope (blue) form a loop with the tail under the standing end.

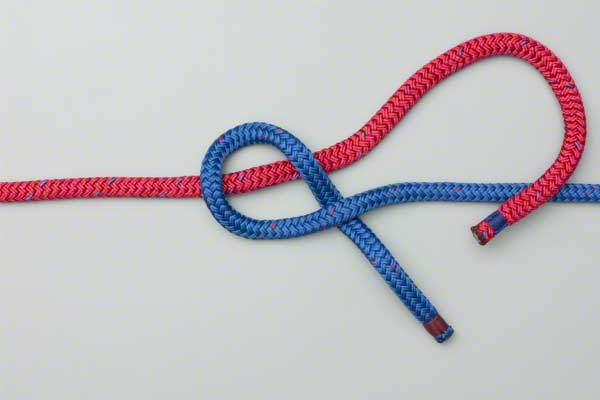

- Pass the other rope (red) under the blue loop and then over and then under as shown.

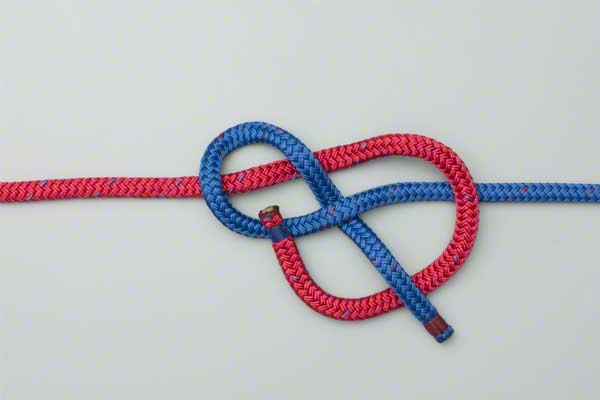

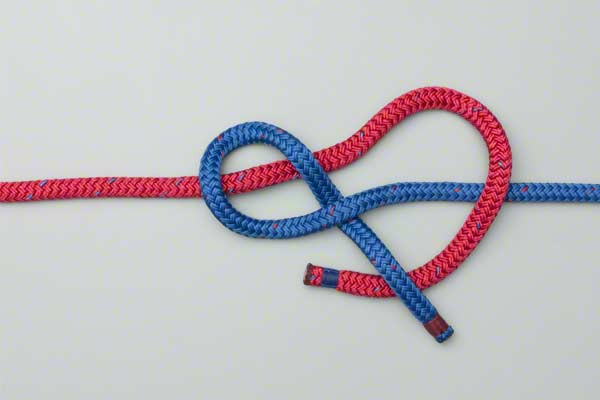

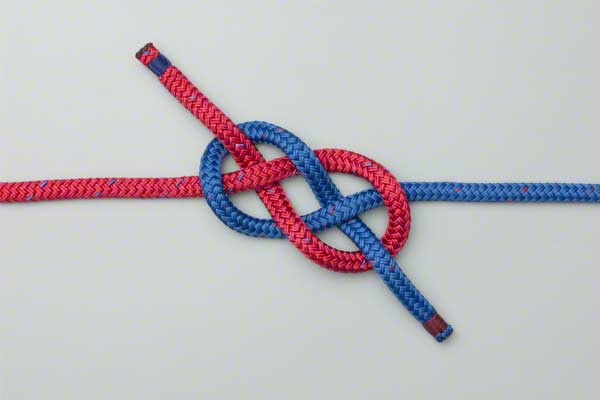

- Thread the tail (red) across the loop passing under itself.
- Then pull both standing ends to tighten the knot.

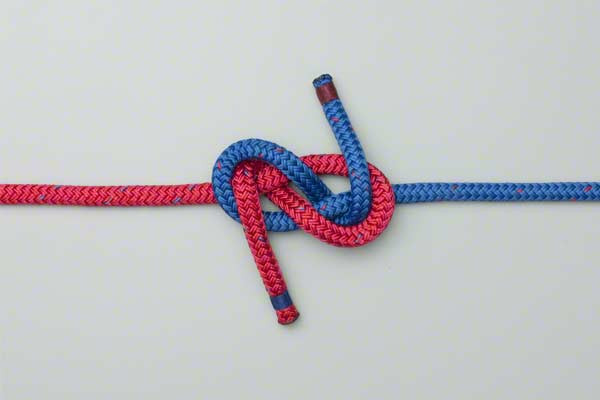

Pro Tip: When tightening the knot for functional use, it will "capsize" or change shape into a more compact form. This is normal and expected for the Carrick Bend to achieve its full strength.
Common Mistakes to Avoid
Even for experienced riggers, the Carrick Bend can be tricky because of its intricate "over-under" pattern. Avoiding these common errors is vital for safety:
1. Incorrect Interlacing
The most common mistake is failing to follow the alternating "over-under" sequence. If any part of the sequence is missed, the knot becomes a "false" Carrick Bend, which can slip or fail entirely under load. Always double-check that the red rope alternates its path through the blue loop perfectly.
2. Neglecting to Seize the Tails
In many professional applications, especially when using heavy hawsers or slippery synthetic ropes, the "tails" (the short ends) should be lashed to the "standing ends" (the main parts of the rope). This prevents the knot from unraveling if the tension is released and then reapplied suddenly.
3. Using Ropes of Vastly Different Diameters
While the Carrick Bend is robust, it relies on the internal friction of the two ropes pressing against each other. If one rope is significantly thinner than the other, it may not "bite" into the larger rope, leading to potential slippage. For mismatched diameters, a Sheet Bend is often a better choice.
4. Failing to "Set" the Knot
Before applying a full load, always "dress" the knot by pulling all four ends to ensure the loops are seated correctly. A messy knot is an unsafe knot.
Related Knots and Splicing
Expanding your knowledge of rope knots involves understanding how different bends compare to one another. Here are three related knots often used in similar outdoor scenarios:
- Sheet Bend: A quick knot for joining ropes of different sizes; less secure than the Carrick.
- Zeppelin Bend: A highly secure, symmetrical bend that remains easy to untie after heavy loading.
- Hunter’s Bend: Also known as the Rigger’s Bend, it is a stable knot using two interlocking overhand knots.
Each of these knots serves a specific purpose, but the Carrick Bend remains the gold standard for heavy-duty, high-tension joining.
Final Words
The Carrick Bend is more than just a way to join two ropes; it is a testament to the ingenuity of maritime history and the physics of friction. By mastering this knot, you gain a reliable tool for everything from emergency towing to securing heavy gear in the backcountry.
Remember that proficiency in outdoor rope techniques comes with practice. We recommend practicing the Carrick Bend with different types of cordage until the "over-under" pattern becomes second nature. Whether you are a professional rigger or an outdoor enthusiast, the Carrick Bend knot is a critical addition to your skill set, providing unparalleled security and ease of use when you need it most.
Stay safe, check your knots, and enjoy the outdoors!
