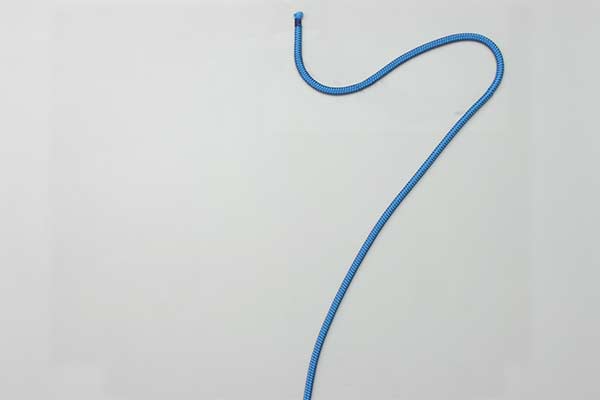

Figure 8 Flake (Fake) Coiling
First remove all twists from the rope. Then start at the free end and lay the rope out alternately left and right in overlapping figure 8 layers so that when pulled it will run out freely without tangling.
Figure 8 Flake (Fake) Details
Uses: Flaking a rope is to arrange it on the deck ready for easy use. The Figure 8 Flake (ABOK # 3110, p 517) allows the rope to be pulled rapidly off the deck with minimal risk of kinking, twisting, or knotting.
Flake vs. Fake: Both Fake and Flake are in widespread use. Advocates for one reject the other and vice-versa.
Applications: It can be used: to lay out the furling line for a roller jib prior to unfurling the jib; to prepare an anchor rope before dropping the anchor; or to ready a dock line in preparation for passing the end ashore. It is also the best way to store a hose on the ground.
Technique: If the rope is going to be released through a pulley or a jam cleat, don't lay out the rope while twists still remain in it. Before making the flake, start at the cleat and work your way to free the end shaking out any twists. Only then start at the end and lay out the rope in the Figure 8 Flake.
Acknowledgment: It is a pleasure to thank David Hoffman for detecting an error in my previous photography and for insisting that it warranted correction. He also suggested that when storing a hose, for example, the Figure 8 Flake would best be laid above the ground on two horizontal arms - with well rounded arcs. It would then be always ready for rapid deployment. I like it. I look forward to seeing it!
Variations: For a long line in a confined area, a second layer of figure 8's can be laid at right angles to the first. Care is required to avoid catching turns of the first layer.
Free End: The animation shows the free end unattached. Depending on the line being used, however, this end may need to be secured. For example, if it was a halyard being allowed to run out, securing the tail would be a sensible precaution.
